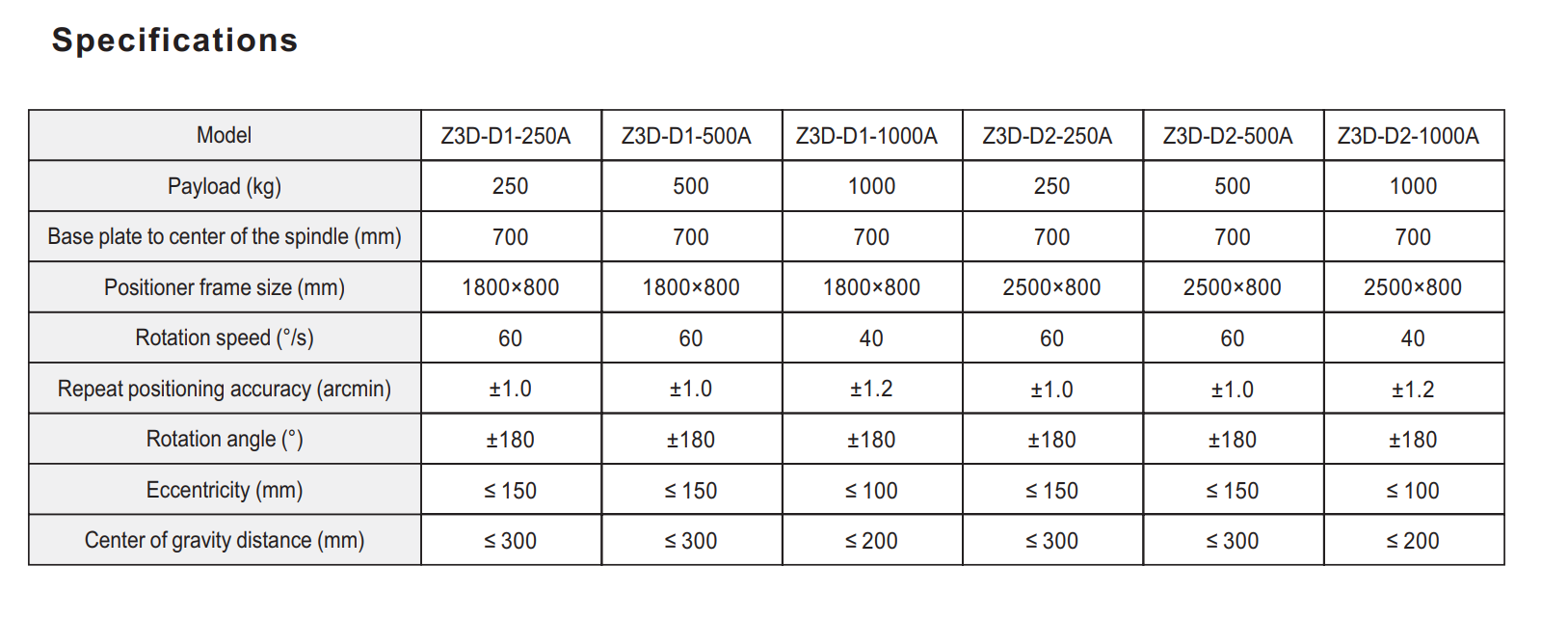

Single Axis Turning frame
|
Z3D-D1-250A 1-axis, 250kg payload, 1800*800mm frame $ 8,935.50
Z3D-D1-500A 1-axis, 500kg payload, 1800*800mm frame $ 9,903.00 Z3D-D1-1000A 1-axis, 1000kg payload, 1800*800mm frame $ 11,838.00
|
Single axis rotary disc
|
Z3D-D2-250A 1-axis, 250kg payload, 2500*800mm frame $ 9,709.50
Z3D-D2-500A 1-axis, 500kg payload, 2500*800mm frame $ 10,677.00 Z3D-D2-1000A 1-axis, 1000kg payload, 2500*800mm frame $ 12,612.00 Z3D-D3-200A 1-axis, 200kg payload, Φ350mm turning disk $ 7,387.50 Z3D-D3-500A 1-axis, 500kg payload, Φ500mm turning disk $ 8,355.00 Z3D-D3-1000A 1-axis, 1000kg payload, Φ800mm turning disk $ 10,677.00
|
|

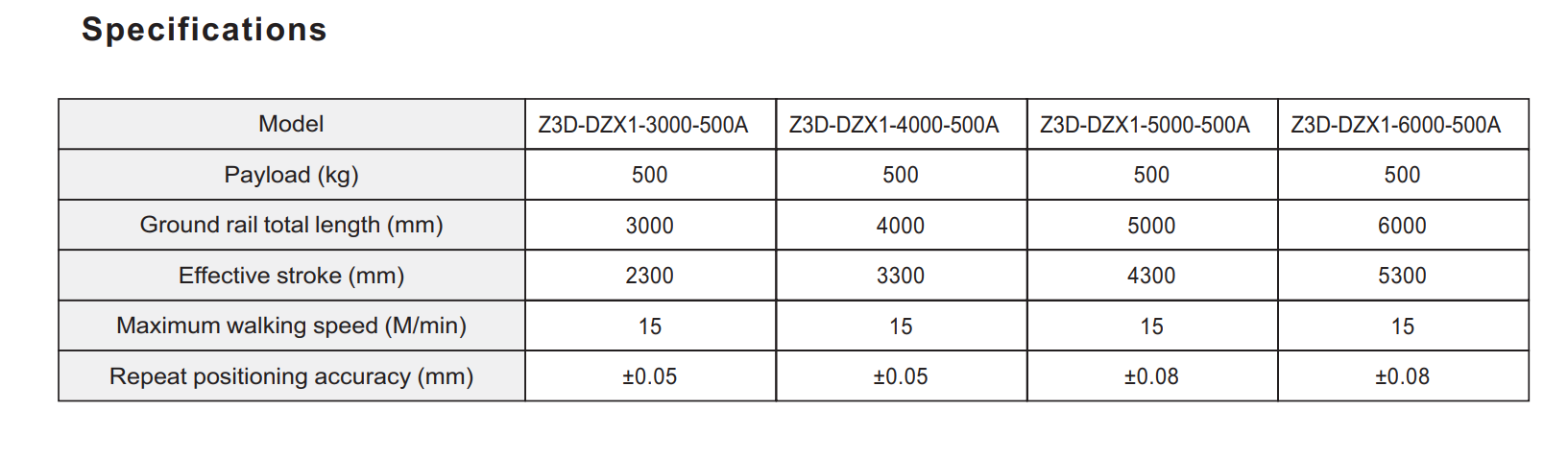

Single Axis Ground rail
|
Z3D-DZX1-3000-500A 1-axis, 500kg payload, 3000mm ground rail $ 13,386.00
Z3D-DZX1-4000-500A 1-axis, 500kg payload, 4000mm ground rail $ 15,321.00 Z3D-DZX1-6000-500A 1-axis, 500kg payload, 6000mm ground rail $ 18,417.00
|

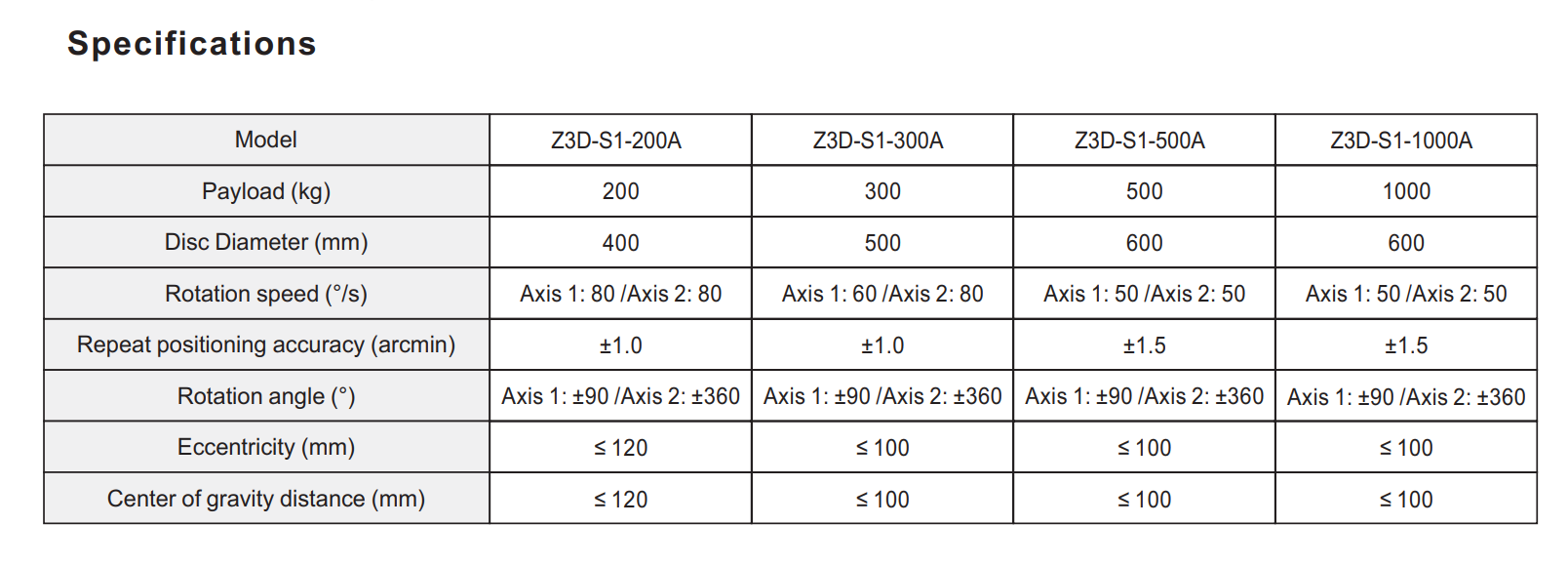

double axis p-type positioners
|
Z3D-S1-200A 2-axis, 200kg payload, P-type $ 13,192.50
Z3D-S1-300A 2-axis, 300kg payload, P-type $ 14,934.00 Z3D-S1-500A 2-axis, 500kg payload, P-type $ 16,869.00
|
|

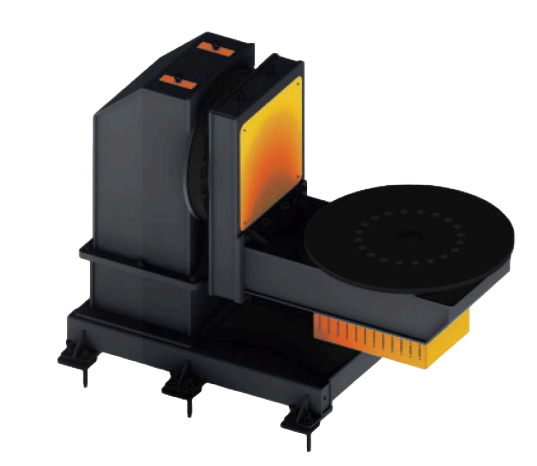

double axis l-type positioners
|
Z3D-SL1-500A 2-axis, 500kg payload, L-type $ 16,675.50
Z3D-SL1-1000A 2-axis, 1000kg payload, L-type $ 18,610.50 Z3D-SL1-2000A 2-axis, 2000kg payload, L-type $ 21,126.00
|

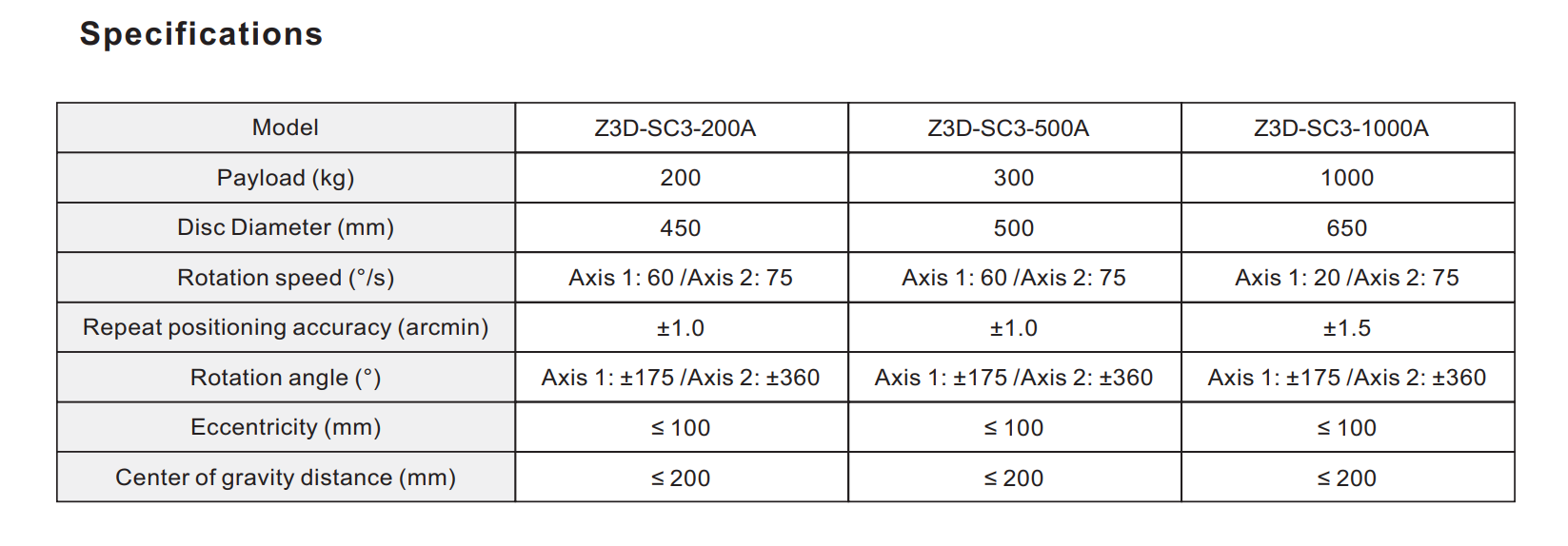

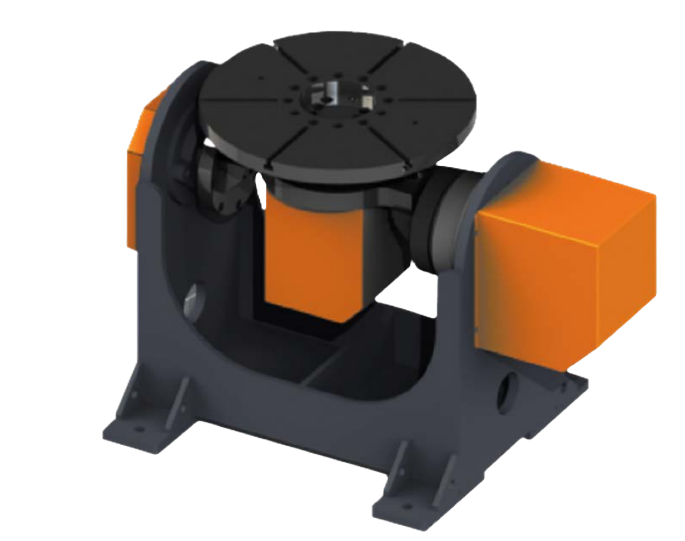

double axis c-type positioners
|
Z3D-SC3-200A 2-axis, 200kg payload, C-type $ 16,675.50
Z3D-SC3-500A 2-axis, 500kg payload, C-type $ 18,610.50 Z3D-SC3-1000A 2-axis, 1000kg payload, C-type $ 21,126.00
|
|

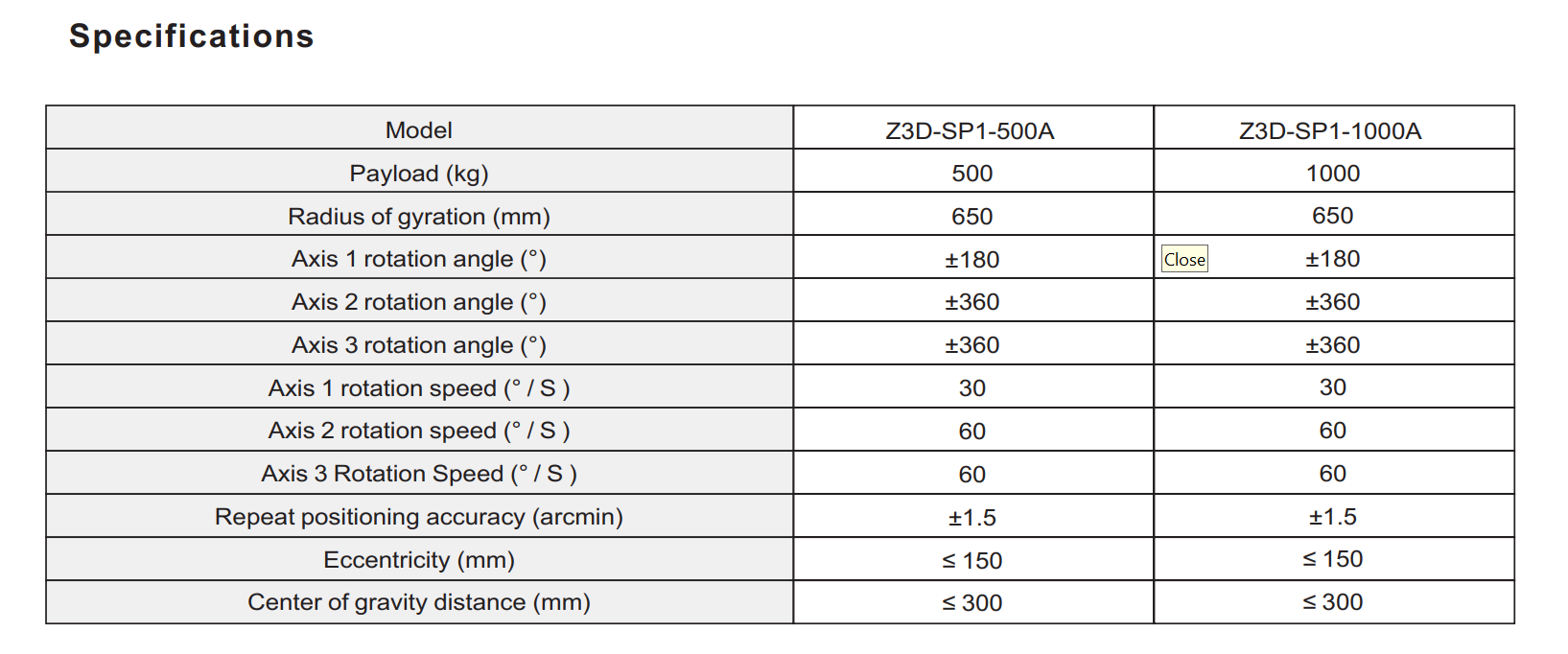

three axis positioners
|
Z3D-SP1-500A 3-axis, 500kg payload $ 27,318.00
Z3D-SP1-1000A 3-axis, 1000kg payload $ 31,188.00
|

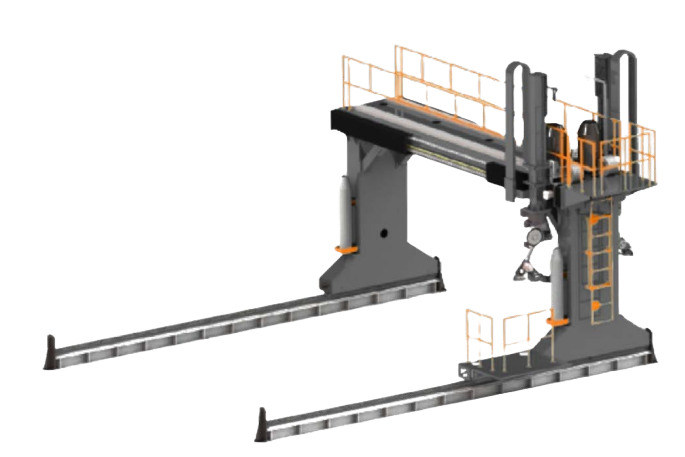

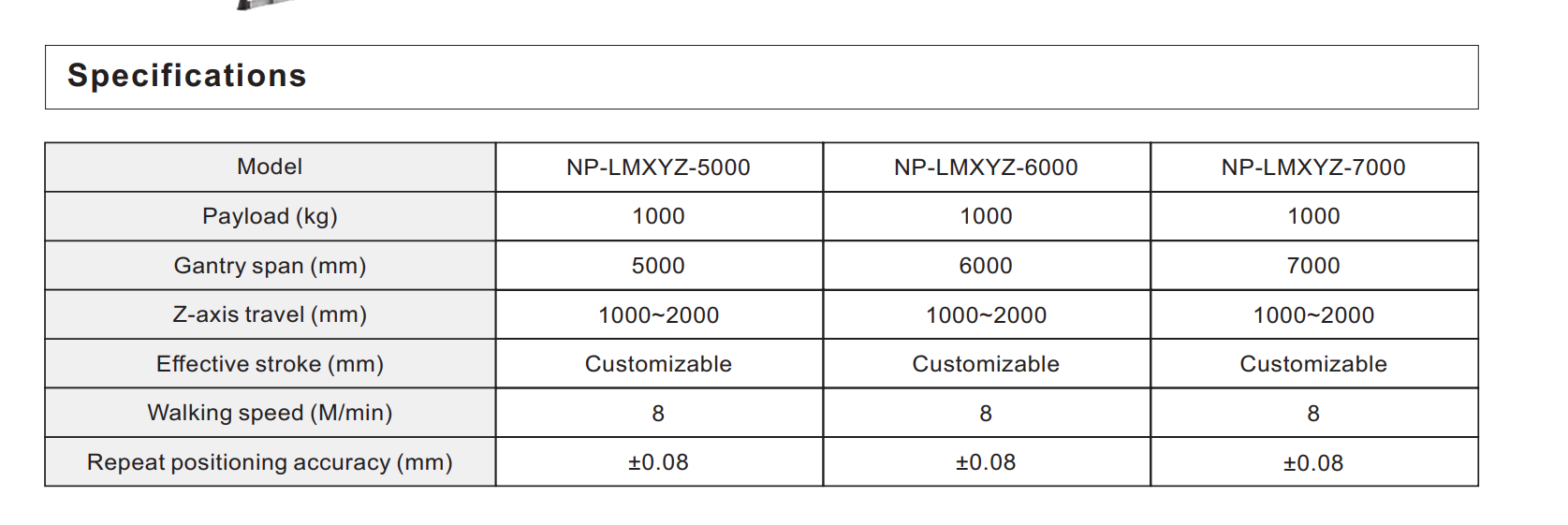

three axis gantries
|
CONTACT US FOR PRICING ON OUR 3 AXIS GANTRY SYSTEMS
|
|
click below to download our full positioners catalog
| z3d_positioners_catalog.pdf |
