High HP Units
​

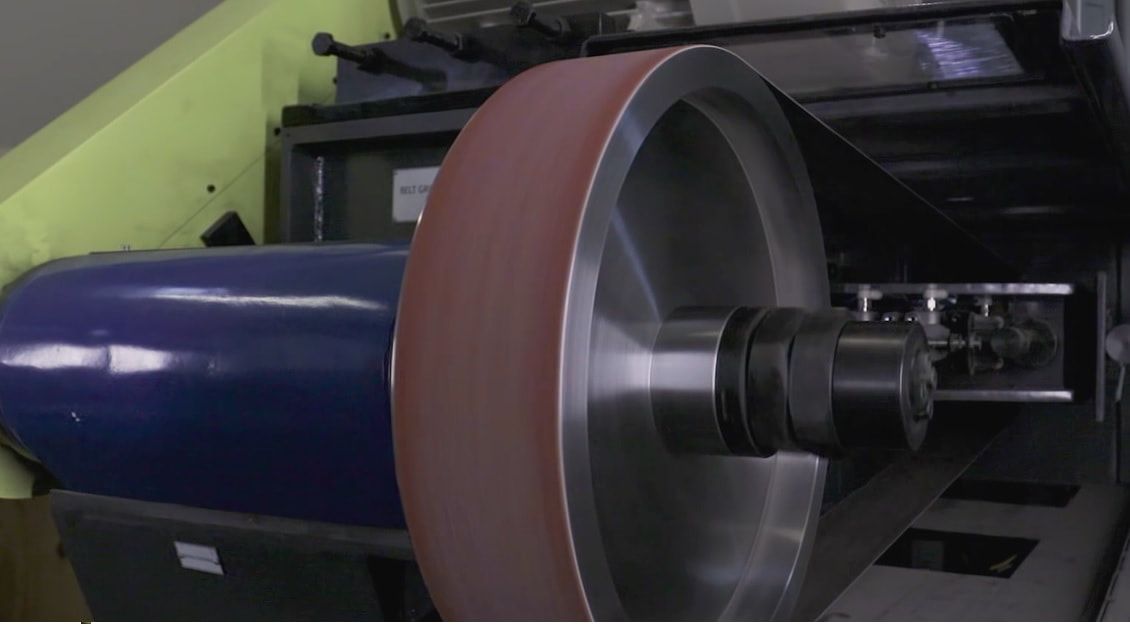

​BGH Series: 30-40HP

The BGH Series of Belt heads are for heavy and rapid grinding with 30 or  40 HP AC motor, linear compliance slide, and pneumatic force control built with precision for automated or manual use. Optionally the head can be purchased without compliance slide. The belt head is on heavy duty steel base for easy installation.

​Download the BGH Brochure or contact us to learn more!

Z3d High HP Belt

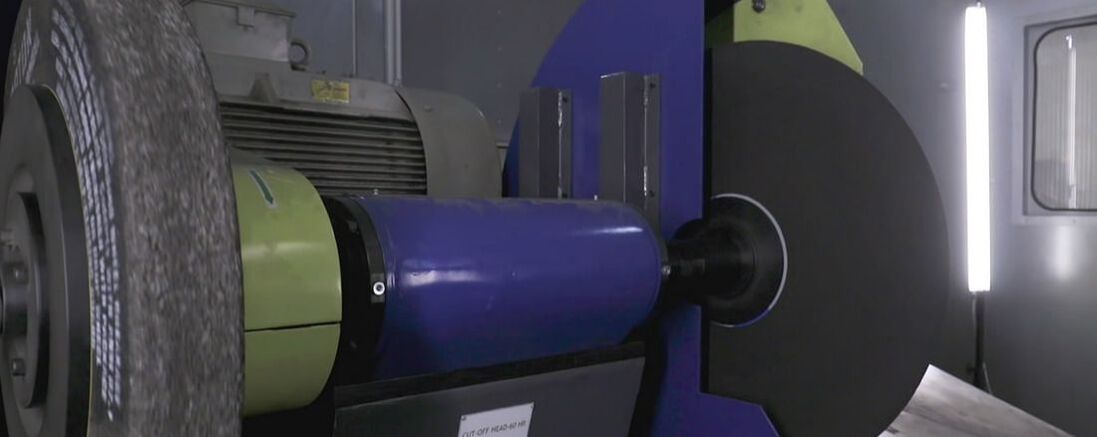

​WHL-X2 Series: 30-60HP

Dual shaft heavy duty grinding and cutoff wheel head driven by 30,40, or 60 HP AC motor. Abrasive wheels like grinding or cutoff can be mounted on both ends of the shaft using flanges and standard hardware. Entire wheel assembly can be mounted on linear compliance slide which moves during process while exerting force which can be controlled from a programmable controller. This allows easier part programming where finishing process is done by pushing part into the force controlled linear slide travel. The head comes with mounting pedestal and can optionally be with fully connected controls interfacing to customer's system via discrete I/O, Ethernet I/P, Profibus, or DeviceNet.

Download the WHL-X2 brochure or contact us to learn more!

Z3D High HP Wheelhead

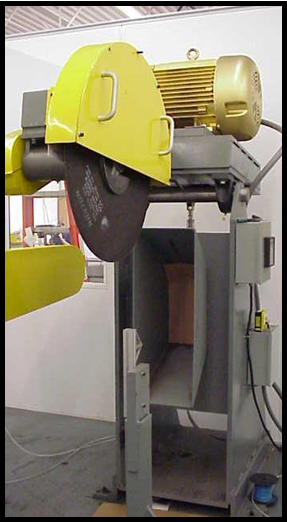

​WHL-CHOP Series

Chop-saw style (pivoting) cutoff head driven by a powerful AC motor. The cutoff wheel is driven down (pivoted) by a servo linear actuator mounted in the back of the pivot platform. The actuator motor can be linked as auxiliary axis to a robot system or be controlled from another programmable device. Having the saw travel fully controlled from a robot system allows for coordinated motion of the saw with the robotic arm generally holding the part being cut. Guards and dust scoops are included.

Download the WHL-CHOP brochure or contact us to learn more!

Z3D High HP Chopsaw
